POS Order Webhook - Failover Flow

Overview

To deal with potential order injection failures, we have a retry policy that uses an exponential backoff with a maximum of 5 retries. This means we may try the connection request up to six times (one initial attempt plus five retries) before marking the order as failed.

Retry Criteria

Retries are attempted only under the following failure conditions;

• Inability to establish a network connection within 3 seconds.
• Receipt of an HTTP 502, 503, or 504 server-error response.

Retry Interval

Retries will use an exponential backoff factor of 2. After the first failed attempt, subsequent retries are delayed using the schedule shown below, beginning with a 10 second delay

The total potential backoff wait time would then be 310 seconds (assuming failures occur immediately)
If each connection attempt awaits the full 3 seconds, the total retry duration increases to 328 seconds

Retry Workflow

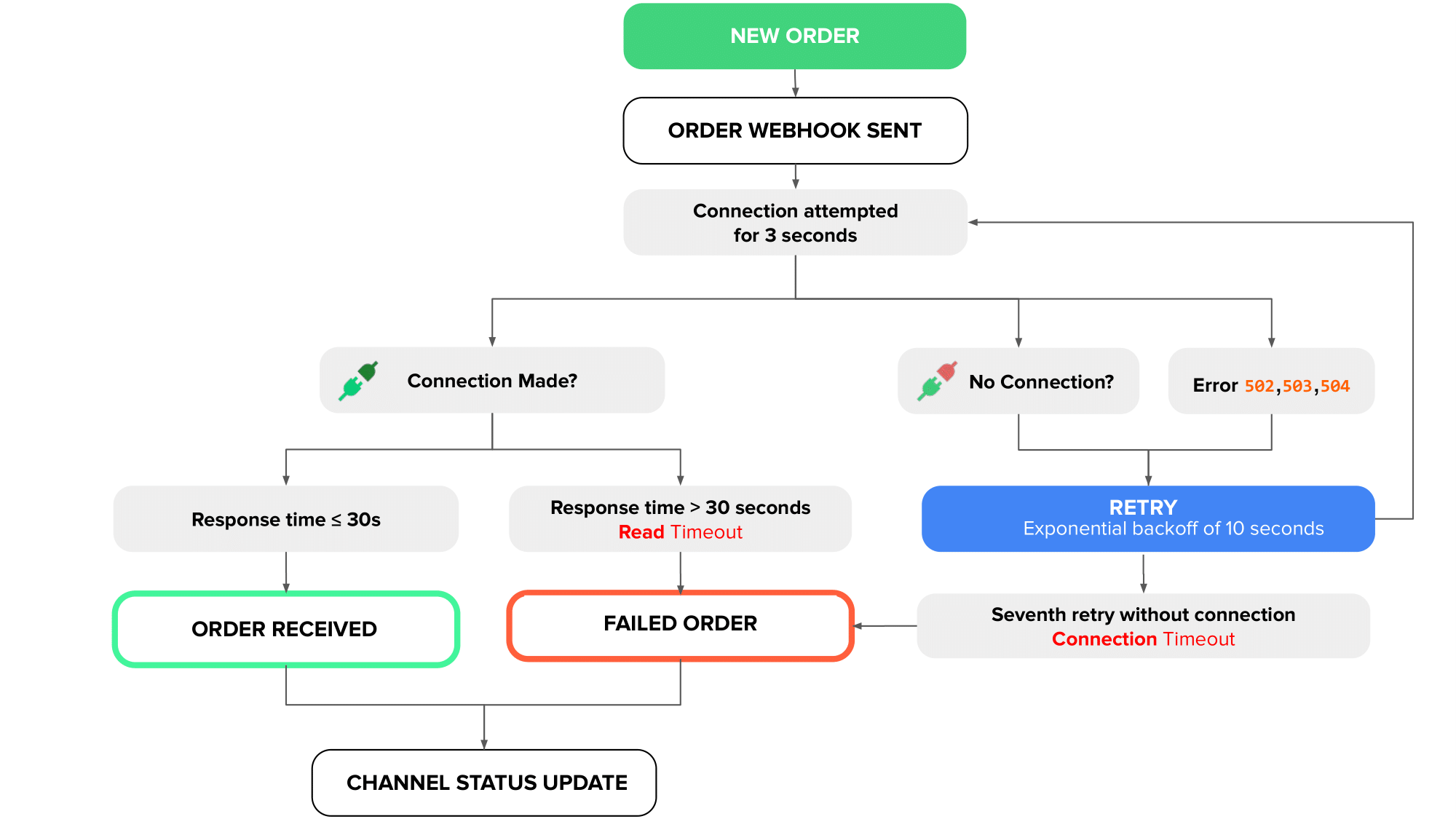

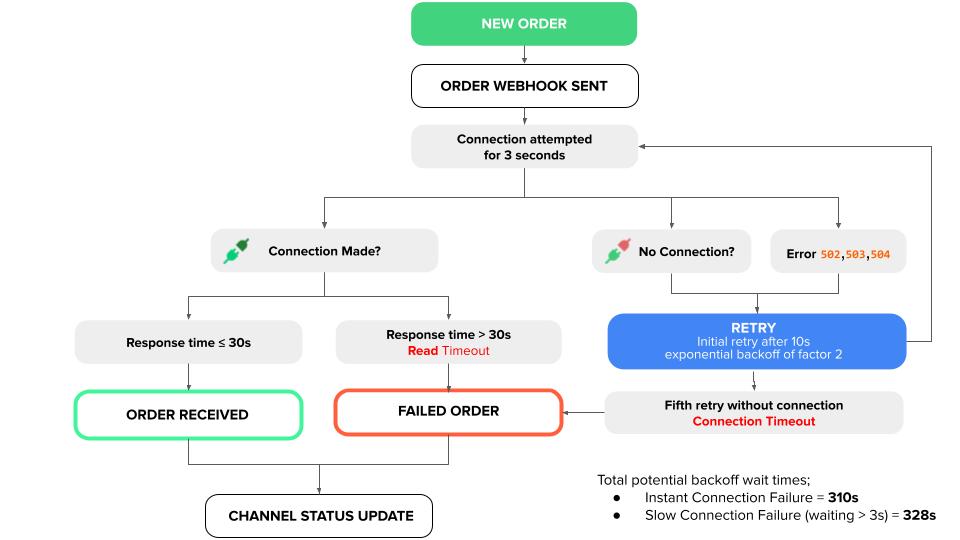

The diagram below illustrates the order-injection workflow for POS integrators, including failover handling and the retry mechanism

See also the documentation on Order Webhooks
